Cummins Wilwood Brake Kit

Cummins Wilwood Brake Kit

Regular price $3,499.00 USD
Regular price Sale price $3,499.00 USD
Sale Sold out
Shipping calculated at checkout.

Avalabile for 2003-2008 Dodge Ram 2500 - 3500 SRW



Front brake kit is designed to bolt on to the factory steering knuckle and retains the stock bearing assembly. Lightweight non-vented 12” rotors are combined with aluminum brake hats attached to the back side of the bearing assembly. Wilwood 6 piston calipers and aluminum caliper mounts replace the bulky factory calipers and brackets. This kit is designed for racing applications and cannot be used on the street. This kit will clear a 16” rim and cuts 84 lbs from the front axle.

Front brake Kit includes: 2 non vented rotors, 2 - 4 piston calipers, 2 rotor hats, 2 caliper brackets, brake pads, brake lines and all mounting hardware.

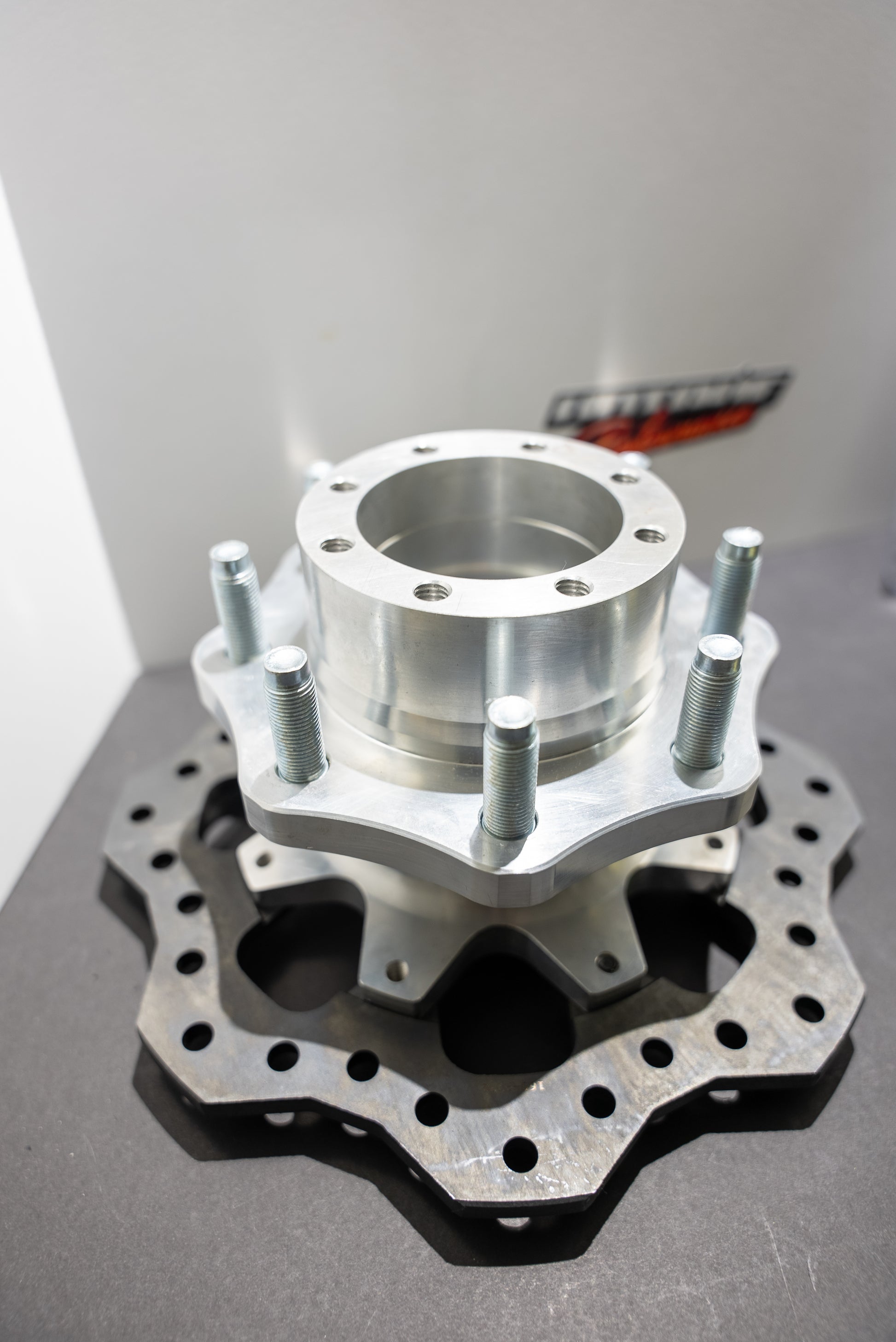

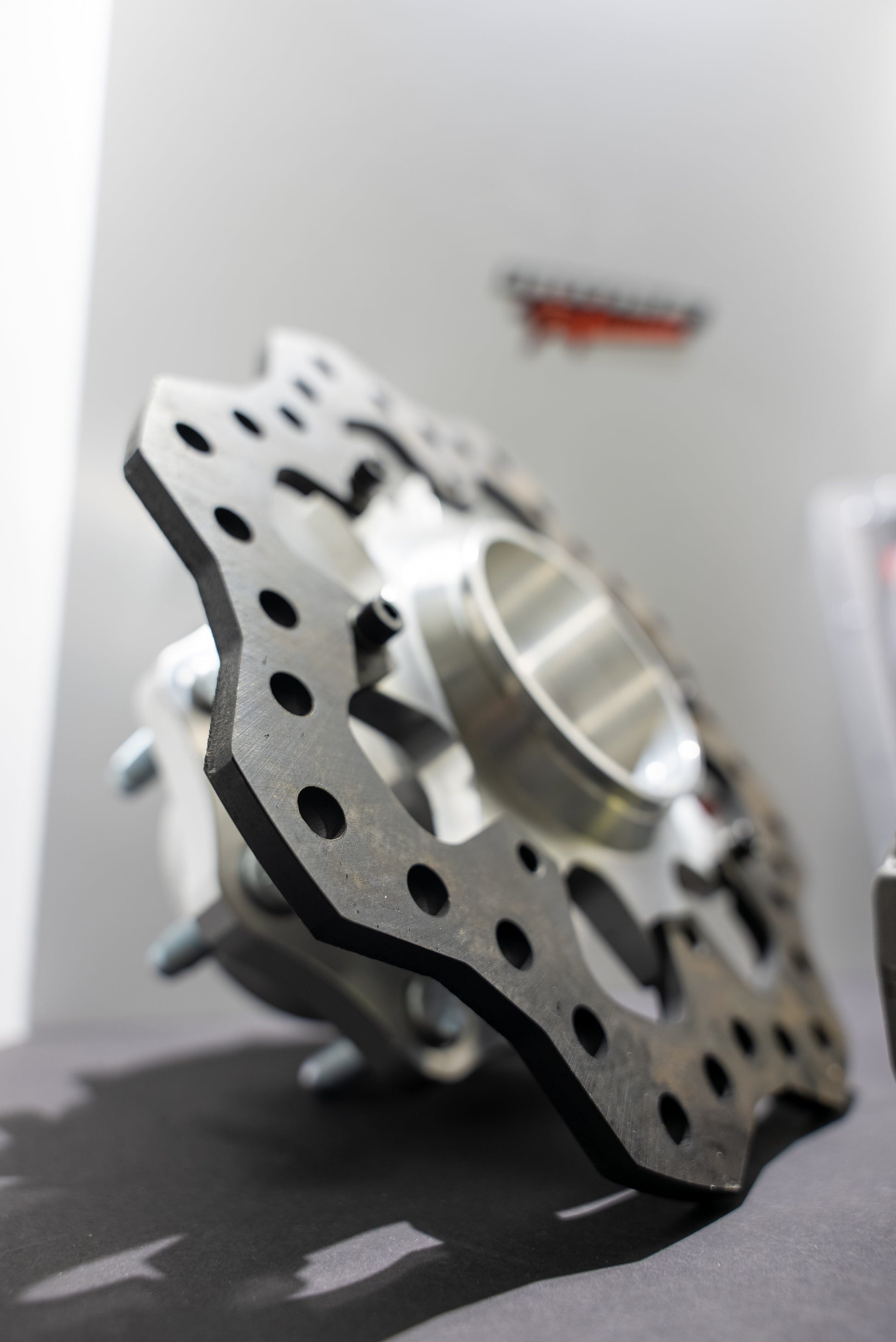

Rear Brake kit features billet 6061 aluminum hubs are a great lightweight option for your Dodge AAM 10.5/11.5 axle. These hubs are designed with stock wheel flange offset and accept factory races, bearings and seals. They come standard with wheel studs installed. Races, bearings and seals will need to be installed. If you would like this done, please contact us for options.

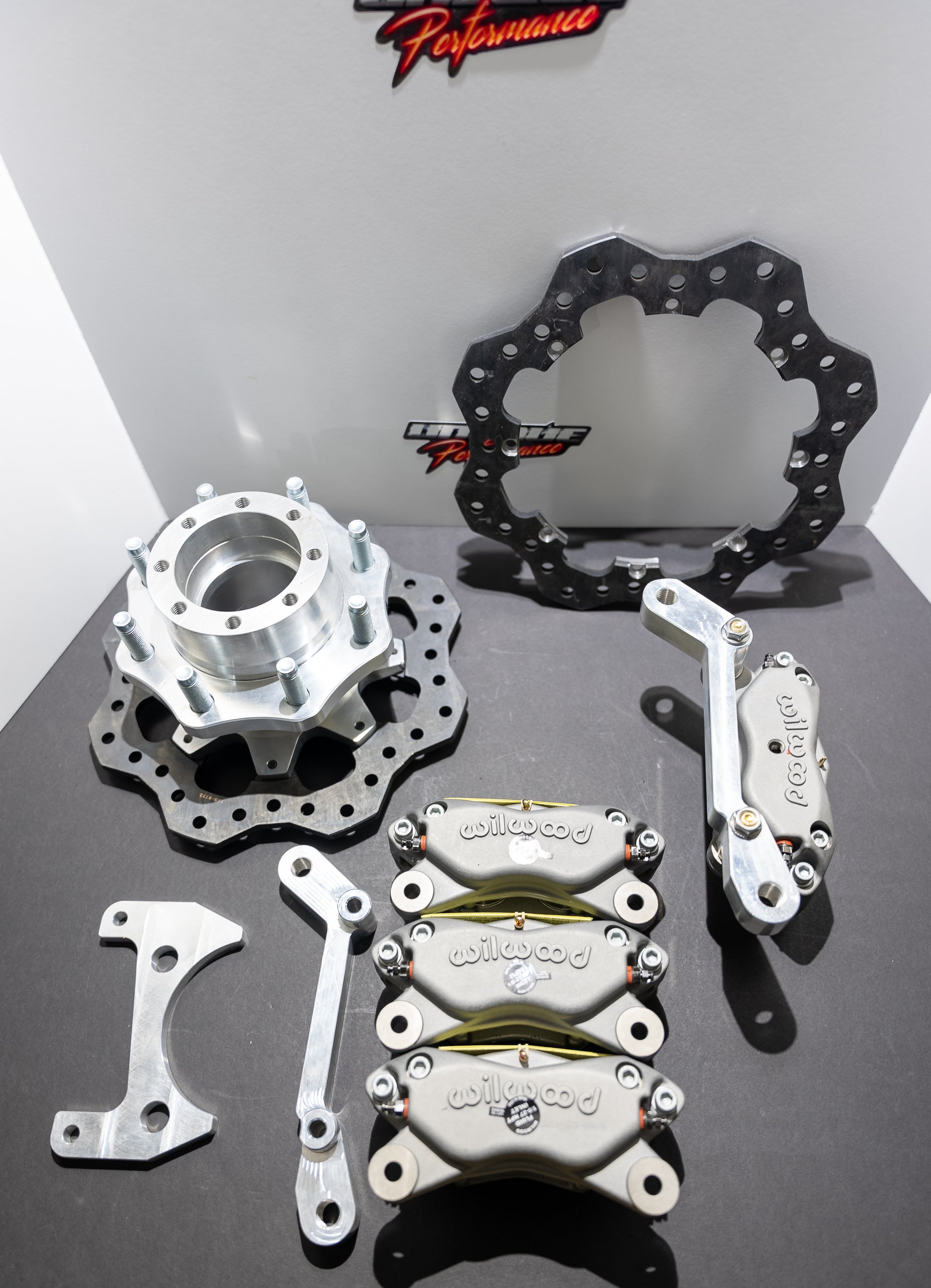

Lightweight wilwood brake kits are available to increase weight savings. Hubs are designed and manufactured with a rotor flange that accepts a light weight wilwood rotor. The caliper mount bolts on the existing axle flange making this kit a bolt on installation. The brake kit includes 2 rotors, 2 calipers, 2 caliper brackets, brake pads and assembly hardware.

The hub and brake kit will cut approximately 130lbs from the rear axle, 70lbs of savings is from rotating mass. The brake kit will clear a 15” rim.

A dual caliper can be added if extra holding power is needed. This kit bolts onto the same flange and can be added at any time. The dual caliper add on consists of 2 calipers, 2 caliper brackets, brake pads and assembly hardware.





*This kit is a performance race/street kit and not intended for towing or heavy duty use. By purchasing this kit you agree and understand to this kits use and intentions. Unique Performance is not liable for any accident or injury related to aftermarket brakes on public road ways.

 *Bearing assemblies will need to be removed from the knuckles in order to install the rotor and rotor hat.

3-6 Week Lead Times.
